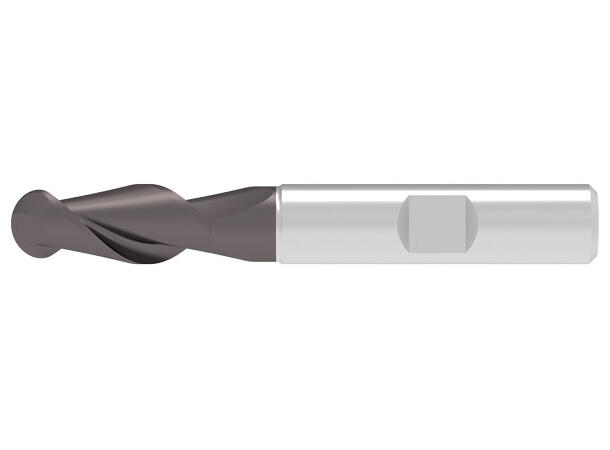

Ceratizit 54073 - 3,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 3,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 3,0 mm radiefres HM

Pinnefres fullradie , belagt

Varenr: CER-5407303115

Alt. varenr: 5407303115

367,- eks. mva.

459,- ink. mva.

459,-Ordinær pris

-+

Bestillingsvare (1 dager)

Beskrivelse

Technical data
Cutting diameter / DC
3 mm
Depth of cut maximum / APMX
5 mm
Neck Diameter / DN
2,9 mm
Head length / LH
9 mm
Alpha
15
Protruding length / LPR
14 mm
Overall length / OAL
50 mm
Mounting spigot diameter? / DCONMS
6 mm
Corner radius / RE
1,5 mm
Peripheral effective cutting edge count / ZEFP
2
Coating name / Grade (Ceratizit) / COATN
Ti1000
Specifications:
