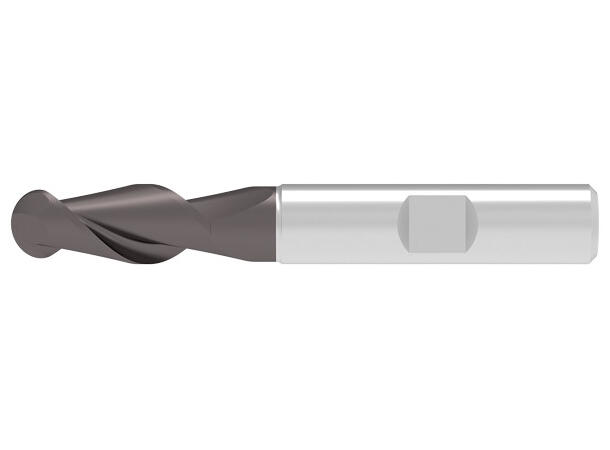

Ceratizit 54073 - 8,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 8,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 8,0 mm radiefres HM

Pinnefres fullradie , belagt

Varenr: CER-5407308140

Alt. varenr: 5407308140

502,- eks. mva.

628,- ink. mva.

628,-Ordinær pris

-+

Bestillingsvare (1 dager)

Beskrivelse

Technical data
Cutting diameter / DC
8 mm
Depth of cut maximum / APMX
12 mm
Neck Diameter / DN
7,8 mm
Head length / LH
20 mm
Alpha
45
Protruding length / LPR
22 mm
Overall length / OAL
58 mm
Mounting spigot diameter? / DCONMS
8 mm
Corner radius / RE
4 mm
Peripheral effective cutting edge count / ZEFP
2
Coating name / Grade (Ceratizit) / COATN
Ti1000
Specifications:

Teknisk info
