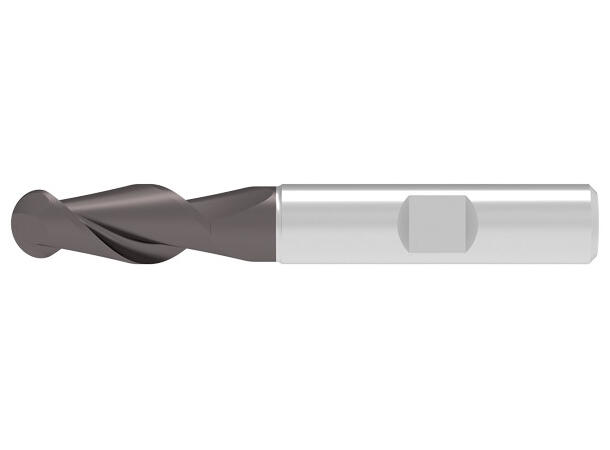

Ceratizit 54073 - 10,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 10,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 10,0 mm radiefres HM

Pinnefres fullradie , belagt

Varenr: CER-5407310150

Alt. varenr: 5407310150

628,- eks. mva.

785,- ink. mva.

785,-Ordinær pris

-+

Bestillingsvare (1 dager)

Beskrivelse

Technical data
Cutting diameter / DC
10 mm
Depth of cut maximum / APMX
14 mm
Neck Diameter / DN
9,8 mm
Head length / LH
26 mm
Alpha
45
Protruding length / LPR
26 mm
Overall length / OAL
66 mm
Mounting spigot diameter? / DCONMS
10 mm
Corner radius / RE
5 mm
Peripheral effective cutting edge count / ZEFP
2
Coating name / Grade (Ceratizit) / COATN
Ti1000
Specifications:
