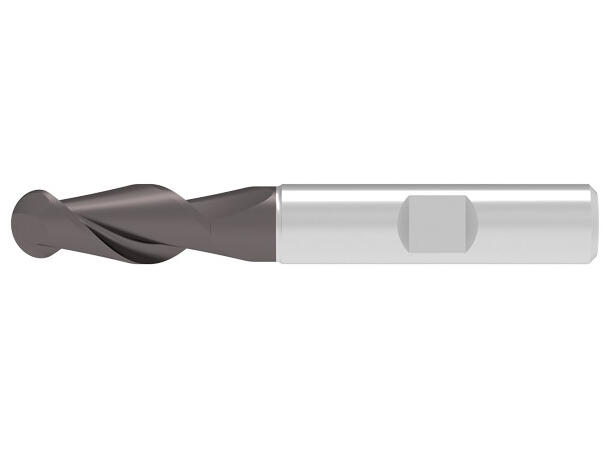

Ceratizit 54073 - 12,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 12,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 12,0 mm radiefres HM

Pinnefres fullradie , belagt

Varenr: CER-5407312160

Alt. varenr: 5407312160

917,- eks. mva.

1 146,- ink. mva.

1 146,-Ordinær pris

-+

Bestillingsvare (1 dager)

Beskrivelse

Technical data
Cutting diameter / DC
12 mm
Depth of cut maximum / APMX
16 mm
Neck Diameter / DN
11,8 mm
Head length / LH
28 mm
Alpha
45
Protruding length / LPR
28 mm
Overall length / OAL
73 mm
Mounting spigot diameter? / DCONMS
12 mm
Corner radius / RE
6 mm
Peripheral effective cutting edge count / ZEFP
2
Coating name / Grade (Ceratizit) / COATN
Ti1000
Specifications:

Teknisk info
