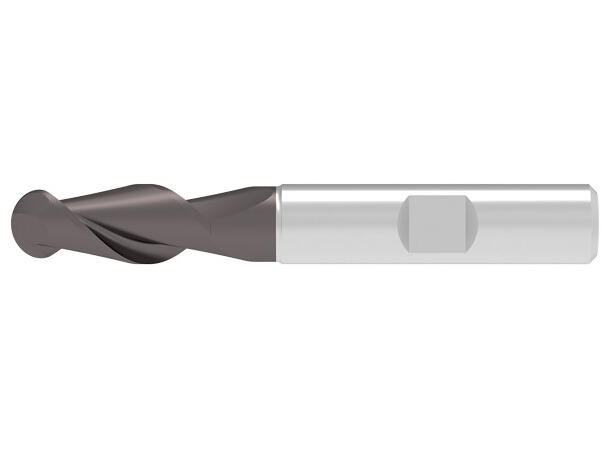

Ceratizit 54073 - 16,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 16,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 16,0 mm radiefres HM

Pinnefres fullradie , belagt

Varenr: CER-5407316180

Alt. varenr: 5407316180

1 498,- eks. mva.

1 872,- ink. mva.

1 872,-Ordinær pris

-+

Bestillingsvare (1 dager)

Beskrivelse

Technical data
Cutting diameter / DC
16 mm
Depth of cut maximum / APMX
22 mm
Neck Diameter / DN
15,7 mm
Head length / LH
32 mm
Alpha
45
Protruding length / LPR
34 mm
Overall length / OAL
82 mm
Mounting spigot diameter? / DCONMS
16 mm
Corner radius / RE
8 mm
Peripheral effective cutting edge count / ZEFP
2
Coating name / Grade (Ceratizit) / COATN
Ti1000
