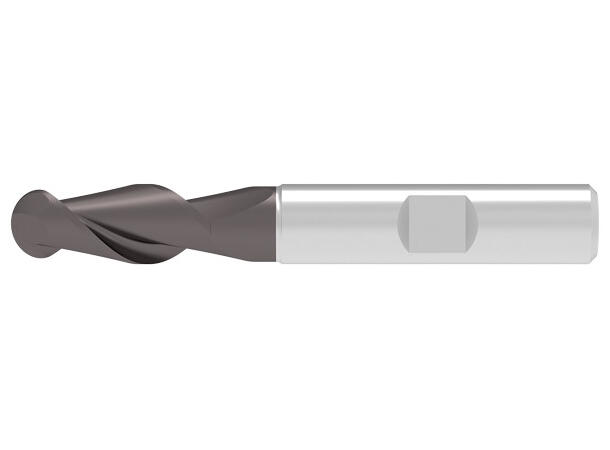

Ceratizit 54073 - 20,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 20,0 mm radiefres HM Pinnefres fullradie , belagt

Ceratizit 54073 - 20,0 mm radiefres HM

Pinnefres fullradie , belagt

Varenr: CER-5407320110

Alt. varenr: 5407320110

2 138,- eks. mva.

2 673,- ink. mva.

2 673,-Ordinær pris

-+

Bestillingsvare (1 dager)

Beskrivelse

Technical data
Cutting diameter / DC
20 mm
Depth of cut maximum / APMX
26 mm
Neck Diameter / DN
19,7 mm
Head length / LH
40 mm
Alpha
45
Protruding length / LPR
42 mm
Overall length / OAL
92 mm
Mounting spigot diameter? / DCONMS
20 mm
Corner radius / RE
10 mm
Peripheral effective cutting edge count / ZEFP
2
Coating name / Grade (Ceratizit) / COATN
Ti1000
