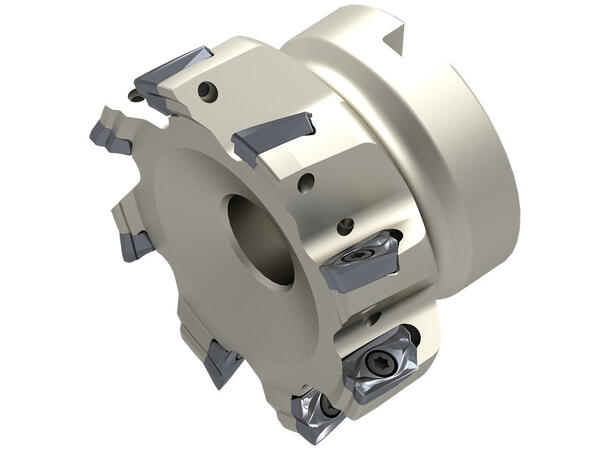

CERATIZIT A211.100.R.10-15 hjørnefres MAXIMILL SHELL SHOULDER MILLING CUTTER

CERATIZIT A211.100.R.10-15 hjørnefres MAXIMILL SHELL SHOULDER MILLING CUTTER

CERATIZIT A211.100.R.10-15 hjørnefres

MAXIMILL SHELL SHOULDER MILLING CUTTER

Varenr: CER-50749100

Alt. varenr: 50749100

7 006,- eks. mva.

8 758,- ink. mva.

-+

Ikke på lager (1 dager)

Beskrivelse

Teknisk info

Produktinformasjon

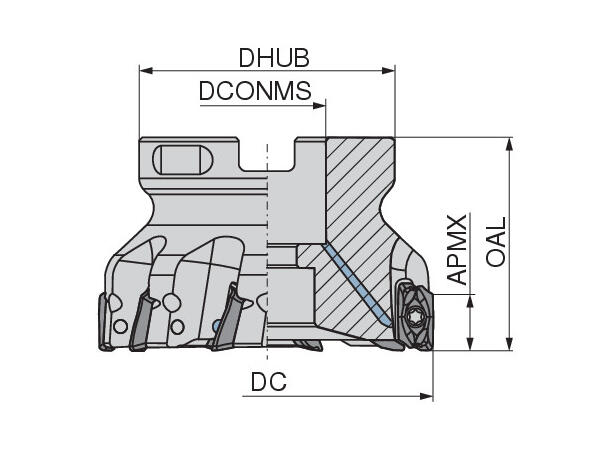

Face mounted insert count/ZNF	10
Hub diameter/DHUB	78,0 mm
Kompatible skjær	XD.T 1505
Mounting spigot diameter/DCONMS	32,0 mm
Skjær diameter/DC	100,0 mm
Skjær lengde/APMX	14,0 mm
Tool cutting edge angle/KAPR	90°
Total lengde/OAL	50,0 mm

Tilbehør

CERATIZIT 10006887/M3,5X8,6/15IP TORX SCREW

14%

CERATIZIT 10006887/M3,5X8,6/15IPTORX SCREW

54,-

63,-

6

CERATIZIT XDKT 150508FR-F20 CTWN215 Skjær for aluminium

15%

CERATIZIT XDKT 150508FR-F20 CTWN215Skjær for aluminium

270,-

318,-

20+

CERATIZIT XDKT 150508SR-M50 CTCP230 CARBIDE MILLING INSERT

15%

CERATIZIT XDKT 150508SR-M50 CTCP230CARBIDE MILLING INSERT

270,-

318,-

CERATIZIT XDKT 150508SR-M50 CTPM240 CARBIDE MILLING INSERT

15%

CERATIZIT XDKT 150508SR-M50 CTPM240CARBIDE MILLING INSERT

270,-

318,-

20+

CERATIZIT XDKT 150512SR-M50 CTCP230 CARBIDE MILLING INSERT

15%

CERATIZIT XDKT 150512SR-M50 CTCP230CARBIDE MILLING INSERT

270,-

318,-

CERATIZIT XDKT 150512SR-M50 CTPM240 CARBIDE MILLING INSERT

15%

CERATIZIT XDKT 150512SR-M50 CTPM240CARBIDE MILLING INSERT

270,-

318,-
