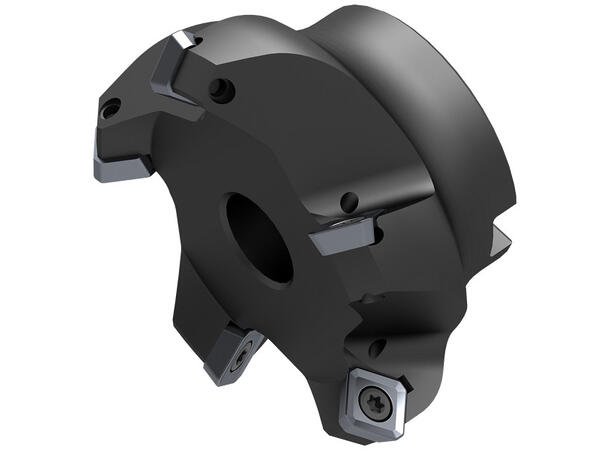

CERATIZIT A270.63.R.04-12 planfres

MAXIMILL SHELL FACE MILLING CUTTER

Varenr: CER-50705063

Alt. varenr: 50705063

6 576,- eks. mva.

8 220,- ink. mva.

Ikke på lager (1 dager)

Beskrivelse

Teknisk info

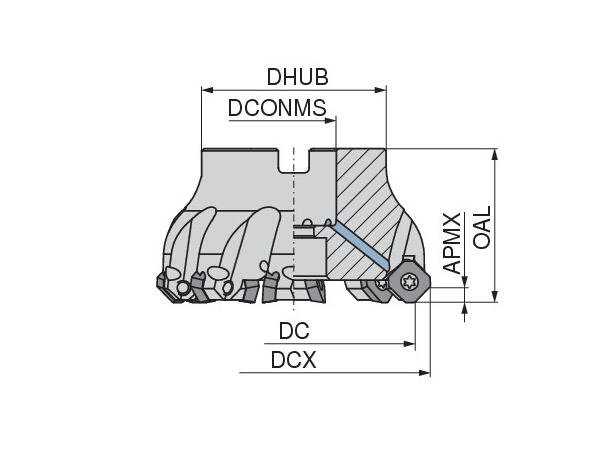

Cutting diameter maximum/DCX	77,0 mm
Face mounted insert count/ZNF	4
Hub diameter/DHUB	48,0 mm
Kompatible skjær	SD../XD.. 1204..
Mounting spigot diameter/DCONMS	22,0 mm
Skjær diameter/DC	63,0 mm
Skjær lengde/APMX	6,0 mm
Tool cutting edge angle/KAPR	45°
Total lengde/OAL	40,0 mm
