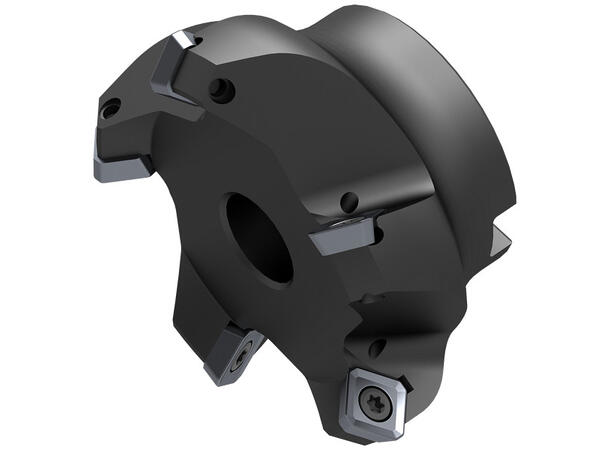

CERATIZIT A270.125.R.07-12 planfres

MAXIMILL SHELL FACE MILLING CUTTER

Varenr: CER-50705125

Alt. varenr: 50705125

10 982,- eks. mva.

13 728,- ink. mva.

Ikke på lager (1 dager)

Beskrivelse

Teknisk info

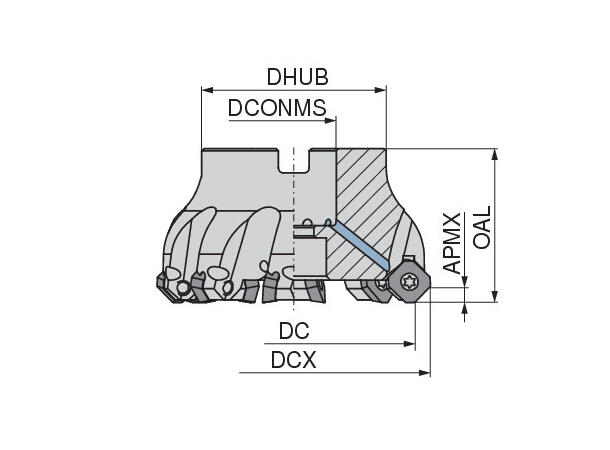

Cutting diameter maximum/DCX	139,0 mm
Face mounted insert count/ZNF	7
Hub diameter/DHUB	88,0 mm
Kompatible skjær	SD../XD.. 1204..
Mounting spigot diameter/DCONMS	40,0 mm
Skjær diameter/DC	125,0 mm
Skjær lengde/APMX	6,0 mm
Tool cutting edge angle/KAPR	45°
Total lengde/OAL	63,0 mm
