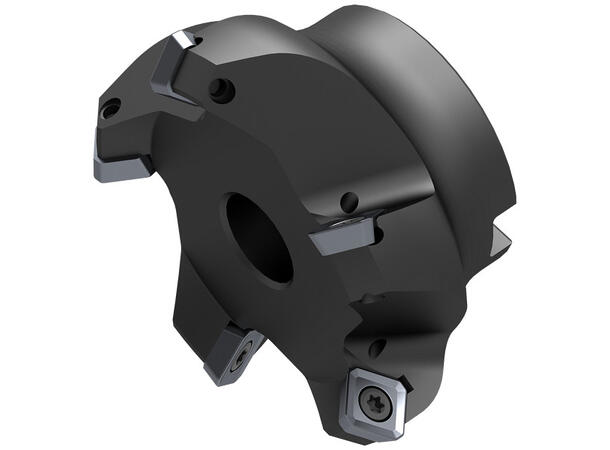

CERATIZIT A270.160.R.08-12

MAXIMILL SHELL FACE MILLING CUTTER

Varenr: CER-50705160

Alt. varenr: 50705160

14 027,- eks. mva.

17 534,- ink. mva.

Ikke på lager (3 dager)

Beskrivelse

Teknisk info

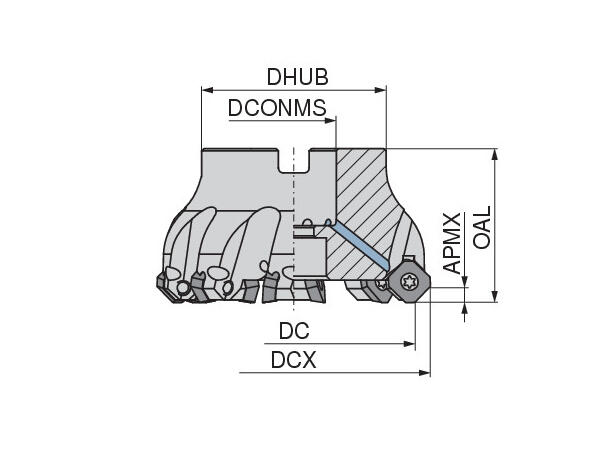

Cutting diameter maximum/DCX	174,0 mm
Face mounted insert count/ZNF	8
Hub diameter/DHUB	94,0 mm
Kompatible skjær	SD../XD.. 1204..
Mounting spigot diameter/DCONMS	40,0 mm
Skjær diameter/DC	160,0 mm
Skjær lengde/APMX	6,0 mm
Tool cutting edge angle/KAPR	45°
Total lengde/OAL	63,0 mm
